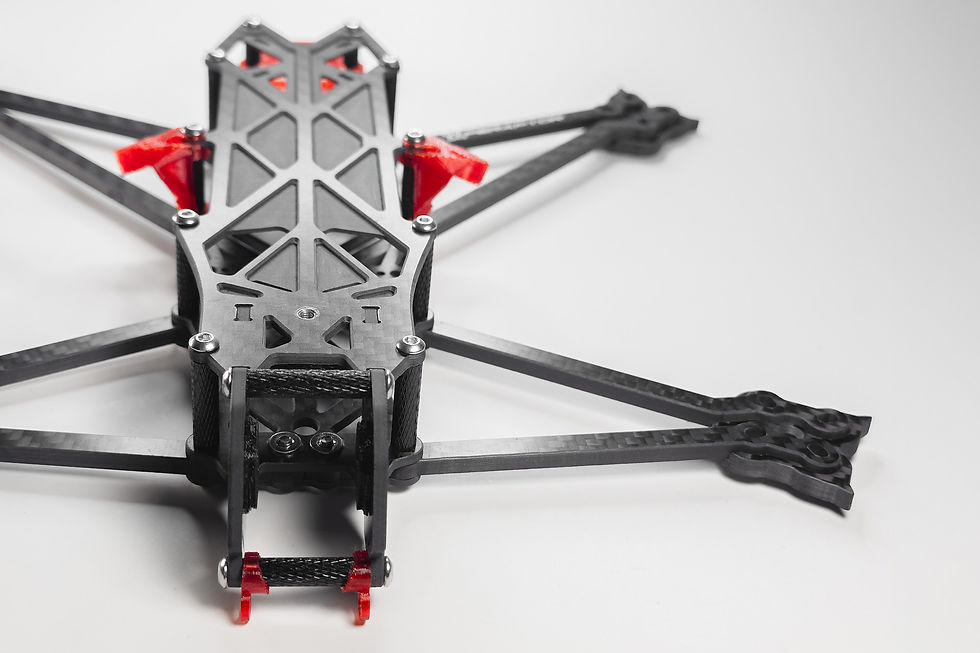

Introducing PROTO6R Core. True to it's name, the frame kit is reduced only to the core essentials to get you started. It is still machined from tough T700 carbon fiber but now complimented with all stainless steel hardware and a few less prints.
It all started when I was searching for something more compact than a 7", more stable than a 5", but much lighter than both for maximum efficiency and performance. Most popular 6" frames I came across just looked like longer-armed 5" tanks, which didn’t make any sense to me. If I'm going to send it, durability isn’t a priority—I’m likely to lose it anyway. So, I set out to design my ideal ultralight 6" long-range explorer.
To achieve this, every T700 carbon fiber plate is milled out to the bare bones. The motors integrate into the structural integrity of the thin dual arms when bolted together. Resulting in a quad that's stable, fun to fly, and highly efficient. The long body can carry 4S2P or 6S2P L-ion batteries while minimizing signal blind spots from the carefully placed antenna prints. Plus, since the Proto6R is made of multiple components, it's easy to service and replace parts.
After flying this, I always find myself questioning if I really need anything else…
I am confident you will enjoy it as much as I do!
~PattyFlipz
-DVR Run 1: Cruising & Distance Exploration
-DVR Run 2: Faster Climb and Pace Exploration
-DVR Run 3: Exploration and Getting Lost
-DVR Run 4: Flying my Dream Spot, Windy!
-Click Here To View All Photos
New March 7th, 2025 Update!
O4 AU PRO variant and O3/Universal variant already comes standard with TPU 60A camera dampener inserts which reduce jello effects and vibrations to the camera
February 15th, 2025 Update!
P6R O4 AU Pro variant added! Plus gyroflow works great!
Also tested: HQProp 6X3.5X3 tri blade prop has a little less noise in the black box data VS previously recommended 2 bladed props.
-DJI O4 PRO Raw Video Download - Wide / No EIS - Load it in gyroflow and try it! I used 1% smoothness, looks great to me. XD
-Black box log download of Feb 15th flight
Features:
) Premium T700 carbon fiber
2) No props in view
3) Extreme practice of weight reduction and a good balance of rigidity
4) Weighs less than your typical 5" for maximum efficiency and flight times
5) 20 ~ 30 minute flight times can be achieved with typical long range configurations
6) 2 mounting zones for action cameras, top front and bottom rear (TPU action camera mount not included but can be downloaded. See downloads section)
7) Comes with supporting TPU prints for different long range configurations
8) 3 electronics mounting zones
9) Designed to be universal - DJI, Analog, HD Zero, Walksnail, etc.
10) Top plate can fit 4S2P and 6S2P lipos
11) Long frame allows your own creativity in mounting additional electronics
12) TPU 60A camera dampener inserts included which reduce vibrations and jello effects to the camera
Proudly designed, 3D printed, and shipped from Vancouver, British Columbia, Canada 🍁
PROTO6 Raptor Core Ultralight LR
Plate Thickness:
Top plate, Middle plate, bottom plates: 2mm
Camera cage set: 2.5mm
Arms and Feet: 4mm
Electronics Mounting:
Middle Plate Front: M3 20x20, M2 25.5x25.5, M3 30x30
Middle Plate Rear: M2 20x20 M2 25.5x25.5 M3 30x30
Top Plate Rear: M2 20x20 M2 25.5x25.5
Maximum Stack Size: 40x40
Motor Mount: 16x16 and 19x19
Max prop size: 6"
Action Camera / Accessories Mounting:
Top Plate - front area with stand offs and press nut
Rear Bottom Plate - stand off and press nut. Use P5CR action camera mount for perfect fitment
Battery Strap Mounting: Top mount Only
Recommended Camera Mounting Size: 19mm ~ 20mm (Variable)
Stand off height: 20mm
Assembled Frame weight: 112g+ (no TPU)
Build weight potential: 380g ~ 420g (no lipo)
